Acteon SoproCARE Camera
SOPROCARE is the first product on the market to reveal gingival inflammation
Read more Enquire nowSOPROCARE is the first product on the market to reveal gingival inflammation
Read more Enquire nowView Our digital imaging guide

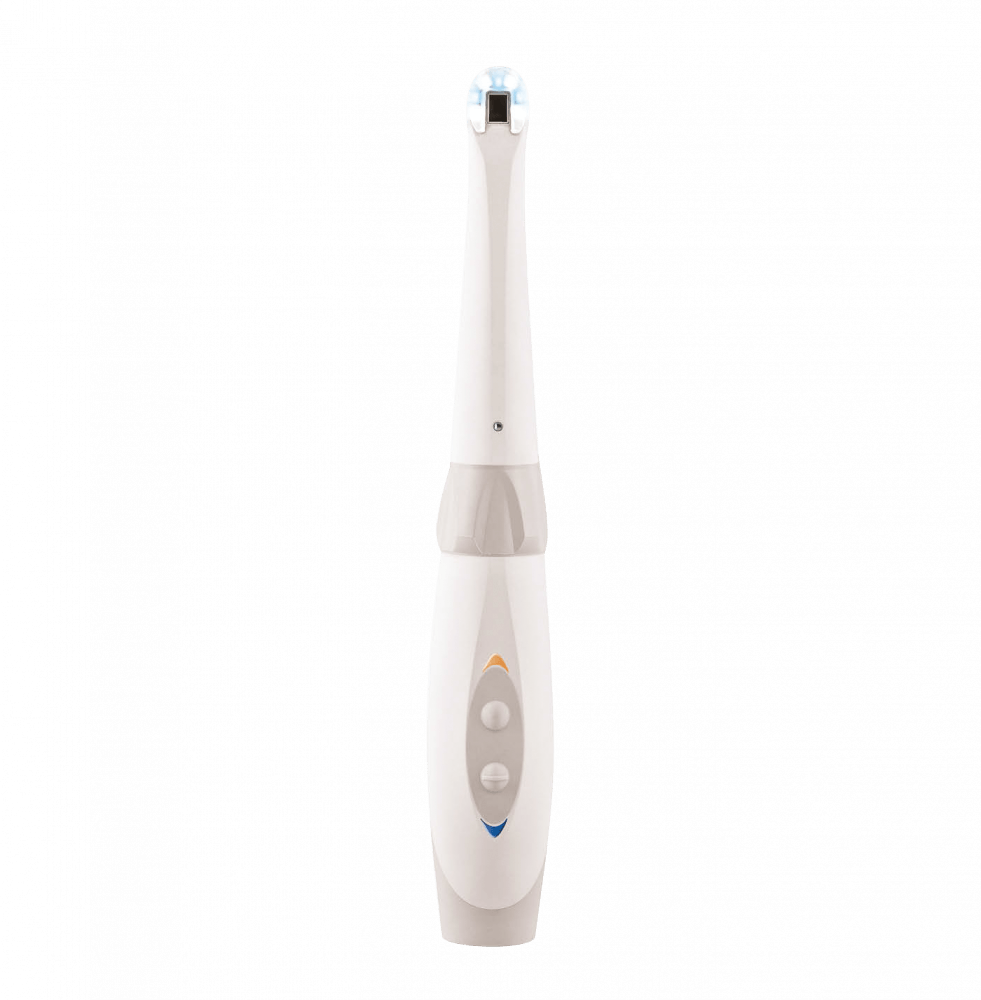

The SOPROCARE concept was developed to assist the dental professional during prophylaxis and periodontal treatment in the dental office.
SOPROCARE reveals caries in CARIO mode, as well as new and old dental plaque in PERIO mode.
In addition, SOPROCARE is the first product on the market to reveal gingival inflammation.
In DAYLIGHT mode, SOPROCARE can also be used as a camera, providing all of the necessary tools to perform a complete and time efficient oral examination.
Due to the wavelength emitted by the LED lights of SOPROCARE®, the new plaque is highlighted by its white and grainy characteristicand old plaque is revealed a shade of yellow and orange.
Enamo-dentinal caries are clearly revealed by the bright red colour in the CARIO mode. Other surrounding tissue is displayed in black and white, thus focusing on the carious lesions.
A preset focus ring replaces the inconvenience of autofocus and provides sharp images without delay, regardless of the object or the distance.
Using your SoproCARE
How to use your SoproCARE
Instructions for use of ACTEON Imaging Cameras
Possible Cause
Defective power supply.
Action
Check the power supply is correctly connected to the network and to the connection box.
Possible Cause
Connection problem.
Action
Check the connecting cable is correctly connected to the handpiece and to the connection box.
Possible Cause
Defective monitor power supply.
Action
Check the video cable is correctly connected to the monitor and to the connection box.
Possible Cause
Connection problem.
Action
Check the monitor is switched on.
Possible Cause
Monitor configuration.
Action
Check the video monitor configuration is correctly set up (brightness, contrast, saturation, etc).
Possible Cause
Rotating ring.
Action
Check the rotating ring is correctly positioned (Extra oral, Intra oral, CARE, macro).
Possible Cause
Hygienic protector.
Action
Check the hygienic protector is correctly positioned on the camera head.
Possible Cause
Rotating ring.
Action
Check the rotating ring is correctly positioned (Extra oral, Intra oral, CARE, macro).
Possible Cause
Hygienic protector.
Action
Check the hygienic protector is correctly positioned on the camera head.
Possible Cause
Configuration.
Action
Check the SOPROCARE is correctly set up in Sopro Imaging (refer to Sopro Imaging user’s manual).
Possible Cause
Driver.
Action
Check the camera is correctly detected in the device driver (correct installation of its driver).
Possible Cause
Connection problem.
Action
Check the USB cable coming from the DOCK is correctly connected to the HUB.
Possible Cause
Camera driver configuration
Action
Check the camera configuration in the Sopro Imaging software (brightness, contrast, saturation, etc.). Refer to Sopro Imaging user’s manual for more information.
What fluoresces in caries?
Some inter collagen links are broken because of an acid attack which induces a fluorescence signal modification. The food detritus fluoresce also in red, so if there is a red alert in CARIO mode, make a professional cleaning to confirm the caries.
What fluoresces in old dental plaque?
When the dental plaque is calcifying, external bacteria (foods, sugar, etc.) are caught.
Why doesn't the new dental plaque fluoresce?
This is because the plaque is not calcified, and the bacteria are not caught yet.
What does the dark color mean in CARIO mode?
With SOPROCARE, the detritus and active caries appear in red and the arrested caries appear in black.
Why is there yellow color left in PERIO mode after scaling?
Indeed slight staining can remain because some detritus have penetrated into the enamel
Why do calculus fluorescence yellow or orange?
The color of the dental plaque can be different depending on dietary habits and degrees of calcification of the plaque. The more the plaque is old, the more bacterias have developed and the more it will be orange.
Is the same DAYLIGHT mode in SOPROLIFE and SOPROCARE?
Yes, the DAYLIGHT mode of SOPROCARE is as effective as the DAYLIGHT mode of SOPROLIFE.
Is the compatibility of SOPROCARE different than SOPROLIFE?
No, you can connect SOPROCARE hand piece on the current installation of Sopro 617, Sopro 717 First or SOPROLIFE without any parameter settings. SOPROCARE is compatible with all SOPRO docking stations, all camera cables or with SOPRO Imaging in the same way. SOPROCARE need exactly the same recommended configuration as SOPROLIFE!
Can SOPROCARE be installed on my dental chair?
Yes, we supply specific connection docks to integrate SOPROCARE in most dental units.
Is it possible to use SOPROCARE in several examination rooms?
If you work in several examination rooms, each of them can be equipped with a docking station linked to the computer or to the video screen available in this room so that you can carry and use SOPROCARE in each of the examination rooms.
Is it possible to use SOPROCARE on a simple video monitor or TV?
Yes, SOPROCARE can be delivered with a connection dock with Video and S-Video outputs.
Can I exchange my former SOPRO camera with SOPROCARE in a simple click?
If you already have a Sopro 595, a Sopro 617 or a Sopro 717, you can connect SOPROCARE hand piece on your present installation without any parameter settings.
Do we need to apply a special product on the teeth prior to using SOPROCARE?
No.
Do we need to perform a prophylactic cleaning before using the SOPROCARE CARIO mode?
No, it is useless to clean prior the first diagnostic in mode CARIO of SOPROCARE. Cleaning with sodium bicarbonate of the suspicious fissure(s) is recommended in order to confirm the carious signal.
Is the blue light from SOPROCARE dangerous for the patient or the dentist?
No, SOPROCARE emits no ultra-violet wave.
Is SOPROCARE advised for children and pregnant women?
Yes, of course. SOPROCARE is free from any ionizing rays and is the perfect caries diagnosis aid tool for children and pregnant women.
Must SOPROCARE be calibrated before use?
No.
Can we sterilize SOPROCARE at the autoclave?
No. SOPROCARE must be used with intra-oral barriers supplied with the product. You can contact your dealer to purchase other dental barriers.
Can we sterilize the black tips at the autoclave?
Yes, they can be sterilized at 134°C - 2 bars - 18 minutes. We nevertheless advise you to change these tips after about fifty cycles of sterilization.
What is the use of the black tips supplied with SOPROCARE?
The protective tip allows to isolate SOPROCARE from any external light during its use in Fluorescence mode. It is also advised to move the light of the scialytic so that it is not directed at the patient’s mouth.
How to freeze a frame?
SOPROCARE is equipped with a SoproTouch (Sopro trademark). You just have to brush the SoproTouch once the selected image appears on screen. The image is automatically freezed on screen and saved in your software if it is configured accordingly. If you prefer using a remote control pedal rather than the SoproTouch to freeze the image, you just have to plug the pedal (supplied as option) on the docking station (if this one is equipped with a pedal input). In this configuration, the SoproTouch is inhibited.
How to clean SOPROCARE?
SOPROCARE can be cleaned with a disinfecting wipe (Type Septol from Pierre Rolland).
Which cleaning products are prohibited on SOPROCARE?
No products with ammoniac, trichloroethylene, dichloroethylene, ammonium chloride , aromatic and chloride hydrocarbons, Methylene chloride, cetones, which can damage the plastic parts.
What is the warranty period of SOPROCARE ?
The standard warranty period is 24 months.
Maintain the camera in accordance with the manufacturer’s use and cleaning instructions.
Before first use, it is imperative to follow the complete disinfecting procedure.
Any camera returned from servicing or maintenance should be completely disinfected before being used.
WARNING: Do not use products containing:
Use of these chemicals subject plastic parts to risk of deterioration.
Do not directly spray disinfecting products on SOPRO products. This could damage the product.
Infection control procedures must be observed when using accessories such as SOPROTIPS and dental barriers in order to prevent cross contamination risk from one patient to another.
In case of contact with blood or excessive soiling, it is strongly recommended to follow a disinfecting process.
First, clean the handpiece with disinfecting wipes, then wrap the handpiece in several disinfecting wipes and leave for 15 minutes.
When disinfecting the handpiece or connection box it is recommended to use surface disinfectant wipes.
Do not scrub, rinse or immerse in disinfecting liquid.
