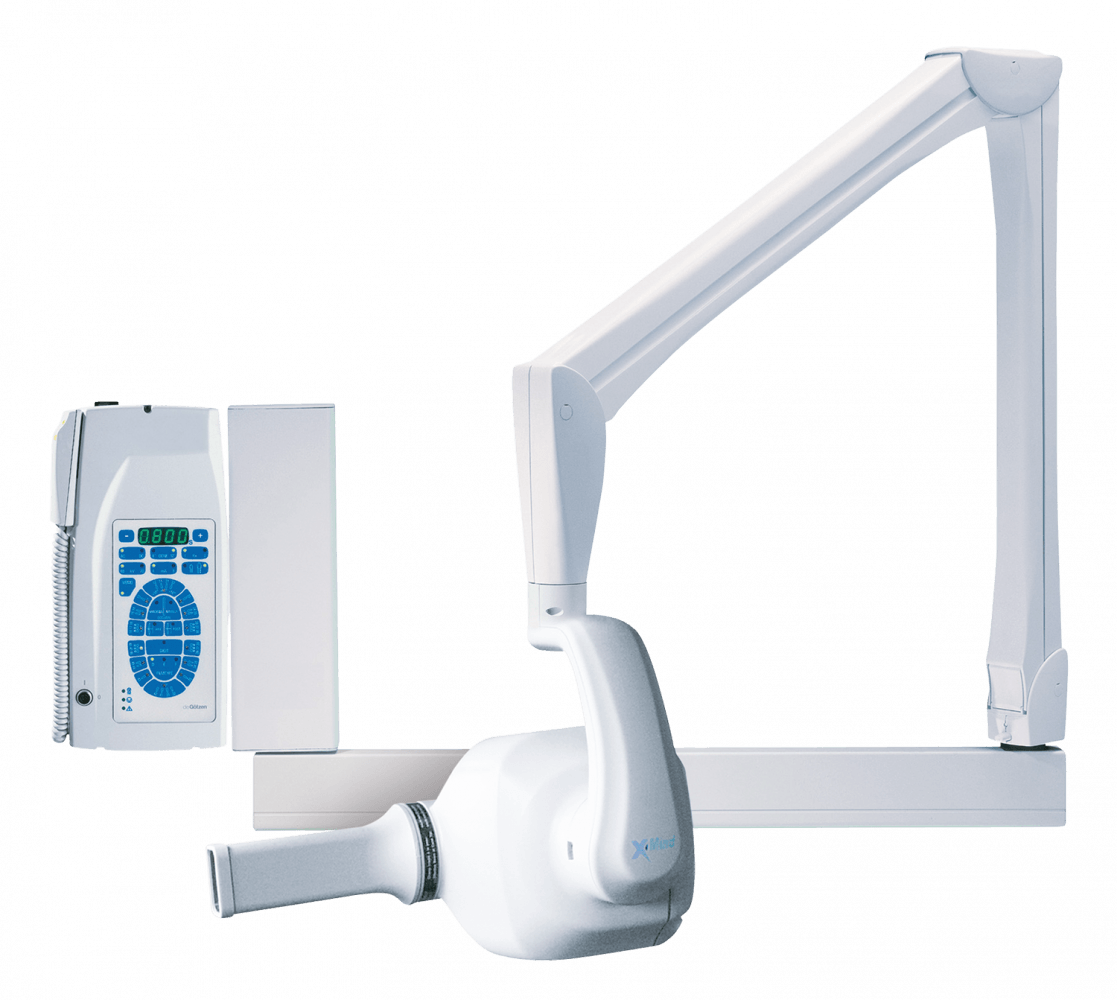

Acteon X-Mind AC/DC X-Ray Unit
Reliable, consistent quality and long lasting high performance
Read more Enquire nowReliable, consistent quality and long lasting high performance
Read more Enquire nowView Our digital imaging guide
The X-MIND AC® and DC® generators are renowned for their reliability along with their consistent performance.
Two beam limitation devices made of lead and the expansion chamber ensure maximum protection for the practitioner and his personnel
Exposure times with the X-MIND DC generator are reduced when used with digital sensors.
With the X-MIND timer, the micro-processor controlled exposure times are user-defined and programmable. The timer is compatible with digital imaging systems and can control two AC and/or DC generators alternatively.
With the X-mind® DC intraoral X-ray system, safe exposure levels and high quality images are guaranteed! Operating at high frequency, it facilitates the emission of very high quality radiation whenever it is used. This is made by the “double chamber” where the tube and the electronic components are separated. The control software automatically compensates for variations in main voltages and the radiation emitted is always of the highest quality to provide pictures with reproducible parameters
Possible Cause
RX1 tubehead is not connected or is out of order.
Action
Call our service team on 0800 028 4749.
Possible Cause
RX2 tubehead is not connected or is out of order.
Action
Call our service team on 0800 028 4749.
Possible Cause
Corrupted eeprom data.
Action
Call our service team on 0800 028 4749.
Possible Cause
Eeprom data not saved properly.
Action
Call our service team on 0800 028 4749.
Possible Cause
Line voltage value not within set limits.
Action
Call our service team on 0800 028 4749.
Possible Cause
Line voltage value not within the ± 15% nominal value.
Action
Call our service team on 0800 028 4749.
Possible Cause
The "x-ray" key always seems to be pressed.
Action
Ensure it is not jammed.
Possible Cause
Anomaly in the control panel.
Action
Call our service team on 0800 028 4749.
Possible Cause
The exposure has been prematurely interrupted.
Action
Keep the "x-ray" key pressed until the end of the exposure.
Possible Cause
Anomaly in the Triac/Relay.
Action
Call our service team on 0800 028 4749.
Possible Cause
Anomaly in the electronic circuit.
Action
Call our service team on 0800 028 4749.
Possible Cause
Anomaly in the control circuit.
Action
Call our service team on 0800 028 4749.
Possible Cause
Incorrect dip-switch configuration.
Action
Call our service team on 0800 028 4749.
Possible Cause
The "Control Button" does not correspond to the selected tubehead.
Action
Select the "Control Button" that corresponds to the selected tubehead.
Possible Cause
The tubehead does not work properly.
Action
Call our service team on 0800 028 4749.
Possible Cause
The tubehead is not in the correct mode.
Action
Call our service team on 0800 028 4749.
Possible Cause
The tubehead has not completed the exposure.
Action
Repeat the exposure or call our service team on 0800 028 4749.
Possible Cause
Problem in the frequency or regulation.
Action
Call our service team on 0800 028 4749.
Possible Cause
The tubehead is not calibrated.
Action
Calibrate the tubehead or call our service team on 0800 028 4749.
Possible Cause
Eeprom data not saved properly.
Action
Call our service team on 0800 028 4749.
Possible Cause
Corrupted eeprom data.
Action
Call our service team on 0800 028 4749.
Possible Cause
Overvoltage error.
Action
Call our service team on 0800 028 4749.
Possible Cause
Anode voltage out of tolerance.
Action
Call our service team on 0800 028 4749.
Possible Cause
Anode current out of tolerance.
Action
Call our service team on 0800 028 4749.
Possible Cause
Control connector.
Action
Call our service team on 0800 028 4749.
Possible Cause
Problem in the reference voltage.
Action
Call our service team on 0800 028 4749.
Possible Cause
Major error.
Action
All x-ray system functions are disabled. Call our service team on 0800 028 4749..
Yes, this system will work with all three formats: film, phosphor plates and sensors.
Yes, the system has various arm length options to suit your surgery setup.
Yes, the system is has simple controls and pre-set exposure times depending on the location of the x-ray in the patients dentition
Yes, the x-ray will be tested by our engineer after installation.
In order to guarantee safety of the X-ray system, a maintenance schedule must be put in place. The owner is responsible for setting up and adhering to a schedule for maintenance which must be carried out by qualified technicians who are able to certify their work with a “Compliance Declaration”.
Run a check on the system and its operation when it is installed and every twelve months thereafter.
Once a year, lubricate the pins and bushes of the wall plate and positioning arm, as specified (refer to the Installation & Maintenance Manual)
Do not lose the adjustment key that comes with the system, since, in time, it might become necessary to make readjustments.
If parts become hard to move or squeak, call our service team on 0800 028 4749.
Use a damp soft cloth and soapy water to clean the outer surfaces.
The spacer cone may be cleaned with cotton wool and surgical alcohol.
