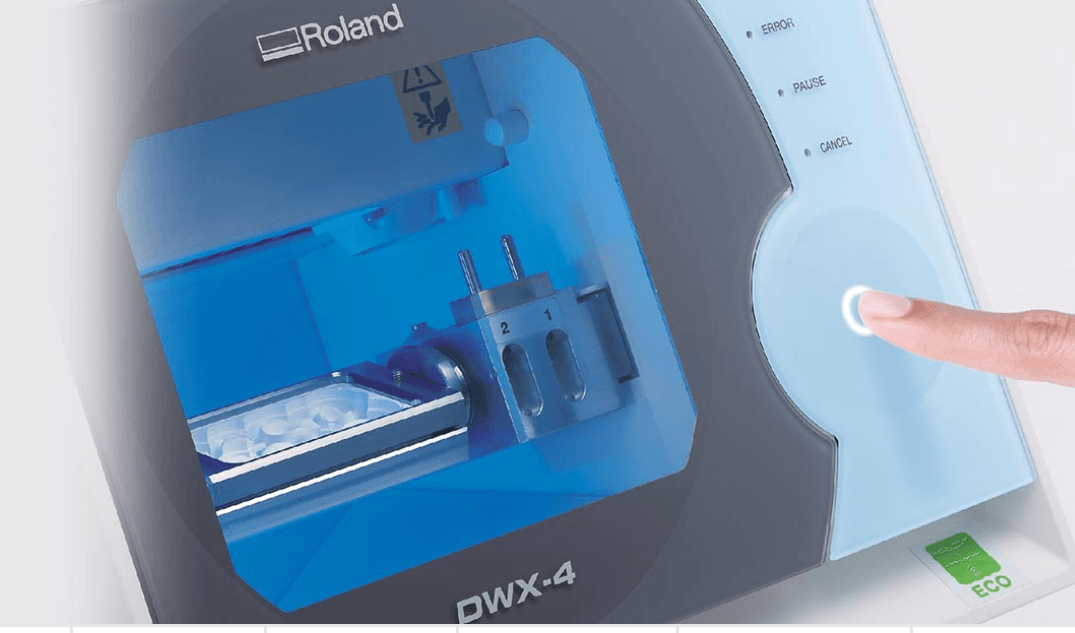

Roland DWX-4 Dental Milling Machine

The industry's most cost-effective and user-friendly dental mill, the DWX-4 is a small dental milling machine that produces single crowns, copings, bridges and hybrid abutments with precision and ease. The DWX-4 is the ideal device for labs and practices just getting into digital milling. With the DWX-4 dental milling machine, you can quickly and economically mill on-demand in a wide variety of materials, including the latest composite resins.


DWX-4 Highlights:

• Mills wax, zircona, PMMA and composite resins in standard blocks and pin-types
• Combines simultaneous 4-axis milling with simple one-button operation
• Automatic tool changer with two tools for unattended milling (four tool option available)
• Mill up to four different pin-type materials simultaneously with an optional multi-pin clamp
• Multicast connection of up to four DWX dental mills to one computer

Technical data

• Cuttable Material: Zirconia (pre-sintered), Wax, PMMA, Composite resin
• Loadable workpiece shape

Block    76 (W) × 38 (D) x 10 to 22 (H) mm
PIN type    Max. 85 (W) x 40 (D) x 22 (H) mm

• Operating speed: XYZ axis: 6 to 1800 mm/min. (0.24 to 70.8 in./min.)
• Spindle motor: Brushless DC motor
• Spindle speed: 6000 to 30000 rpm
• Rotary axis travel angle: A: ±360°
• Number of tools housed: 2 (option to increase to 4)
• Attachable tool: Shank diameter: 4 mm, Length: 40 to 55 mm
• Compatible compressed air: 0.02 to 0.2 MPa
• Interface: USB
• Control command set: RML-1, NC code
• Power requirements: Voltage and frequency AC100 to 240 V ± 10 %, 50/60 Hz, 0.8 to 0.4 A (overvoltage category II, IEC 60664-1)
• Power consumption: Approx. 70 W
• Operating noise: During operation: 70 dB (A) or less (when not cutting)
• During standby:40 dB (A) or less
• External dimensions: 340 (W) × 365 (D) × 405 (H) mm (13.4 × 14.4 × 16.0 in.)
• Weight: 22 kg (48.5 lb)
